12m (40ft) High Cube Shipping Container - Insulated Thermal Storage Unit (Ex-Refrigerated Base) | SA Depot

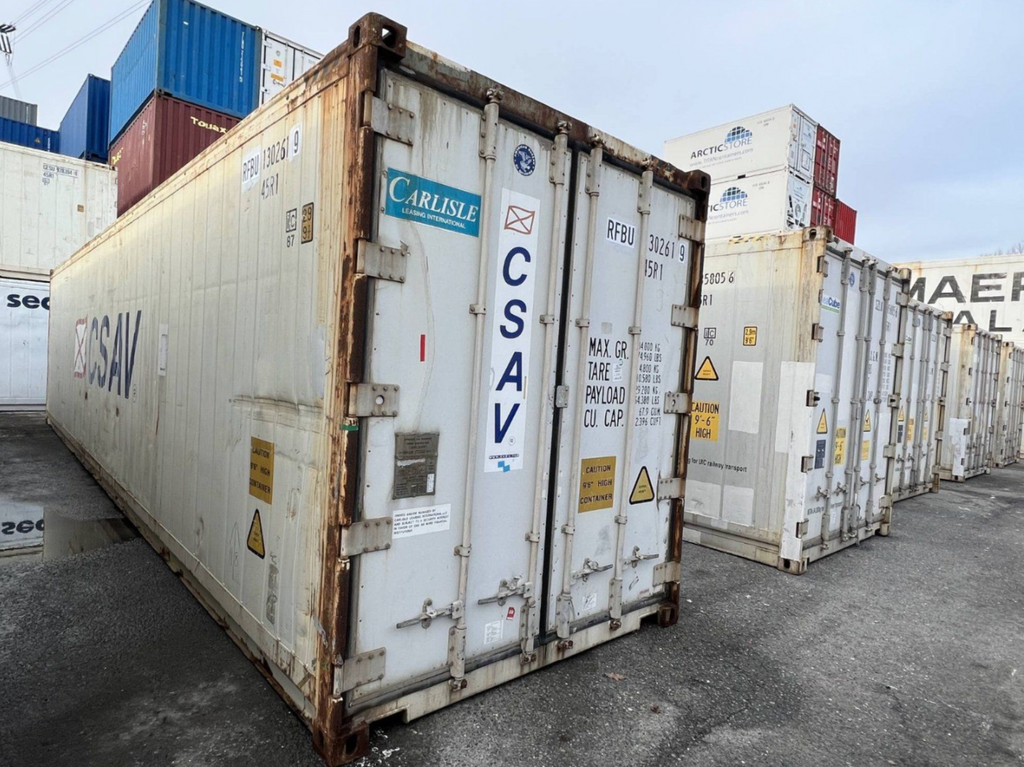

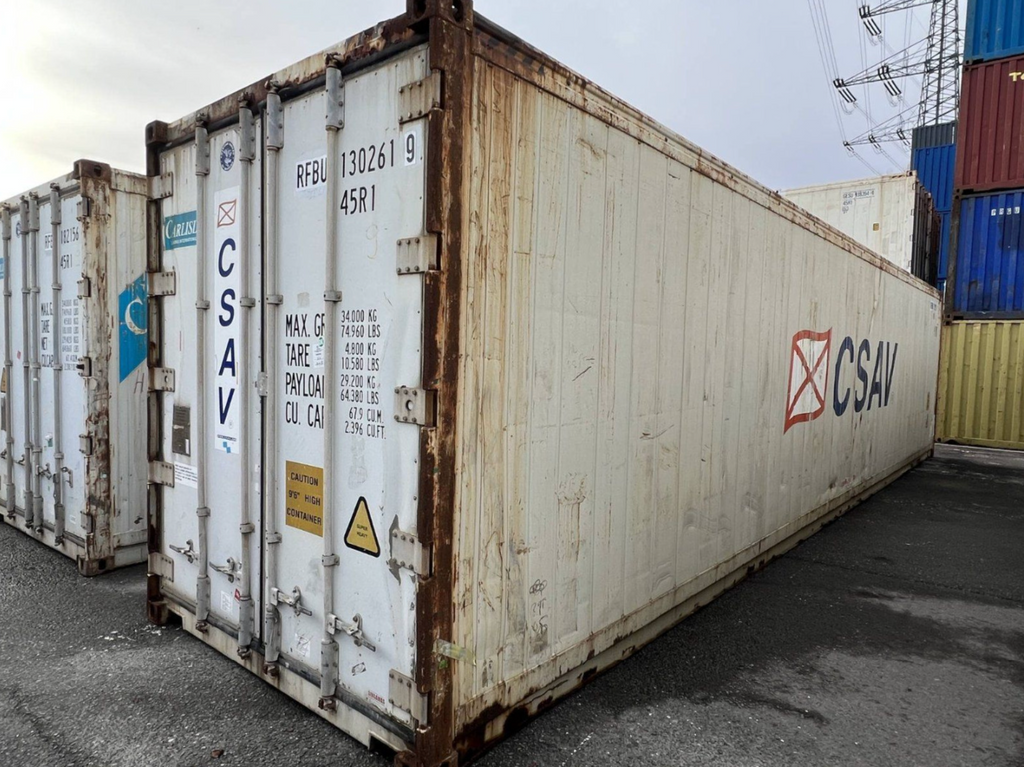

The specialized 40-foot (12m) high cube insulated container from SA Depot delivers an expansive, climate-stable storage environment within a high-volume structural footprint. Featuring an extra foot of vertical clearance compared to standard models, this premium thermal container is built on a heavy-duty, unpainted intermodal chassis. This raw aluminum or stainless steel exterior finish offers maximum structural utility and a clean, neutral industrial appearance that eliminates the need for cosmetic paint maintenance over long-term field use.

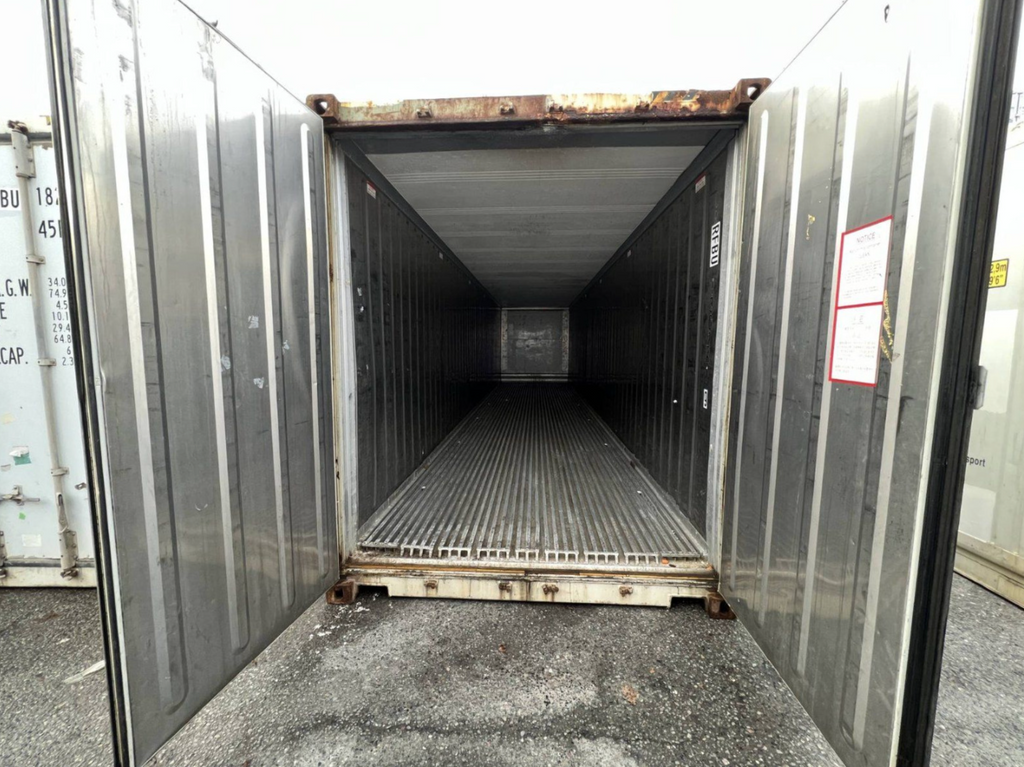

Expertly engineered as a converted ex-refrigerated core unit, the structure features heavily insulated polyurethane foam sandwich walls that completely isolate internal inventory from extreme ambient temperature shifts and eliminate condensation buildup. The food-safe interior is lined with commercial-grade stainless steel and aluminum skin, paired with an industrial aluminum T-profile floor to optimize sub-payload air circulation. Access is secured by a structurally insulated double cargo door system outfitted with thick heavy-duty rubber weather gaskets and high-leverage mechanical locking bars, providing a completely wind and watertight (WWT) envelope for tools, commercial inventory, document archives, or agricultural goods.
Product Specifications
| Technical Attribute | Metric Measurement | Imperial Measurement |
| Container Type | 40ft High Cube Thermal / Insulated (HC) | Ex-Refrigerated Conversion |
| Exterior Finish | Unpainted Industrial / Raw Metallic | Zero-Maintenance Shell |
| Thermal Insulation | Polyurethane Foam Core Panels | Condensation Prevention |
| Interior Lining | Food-Safe Stainless Steel & Aluminum | Wash-Down Compliant |

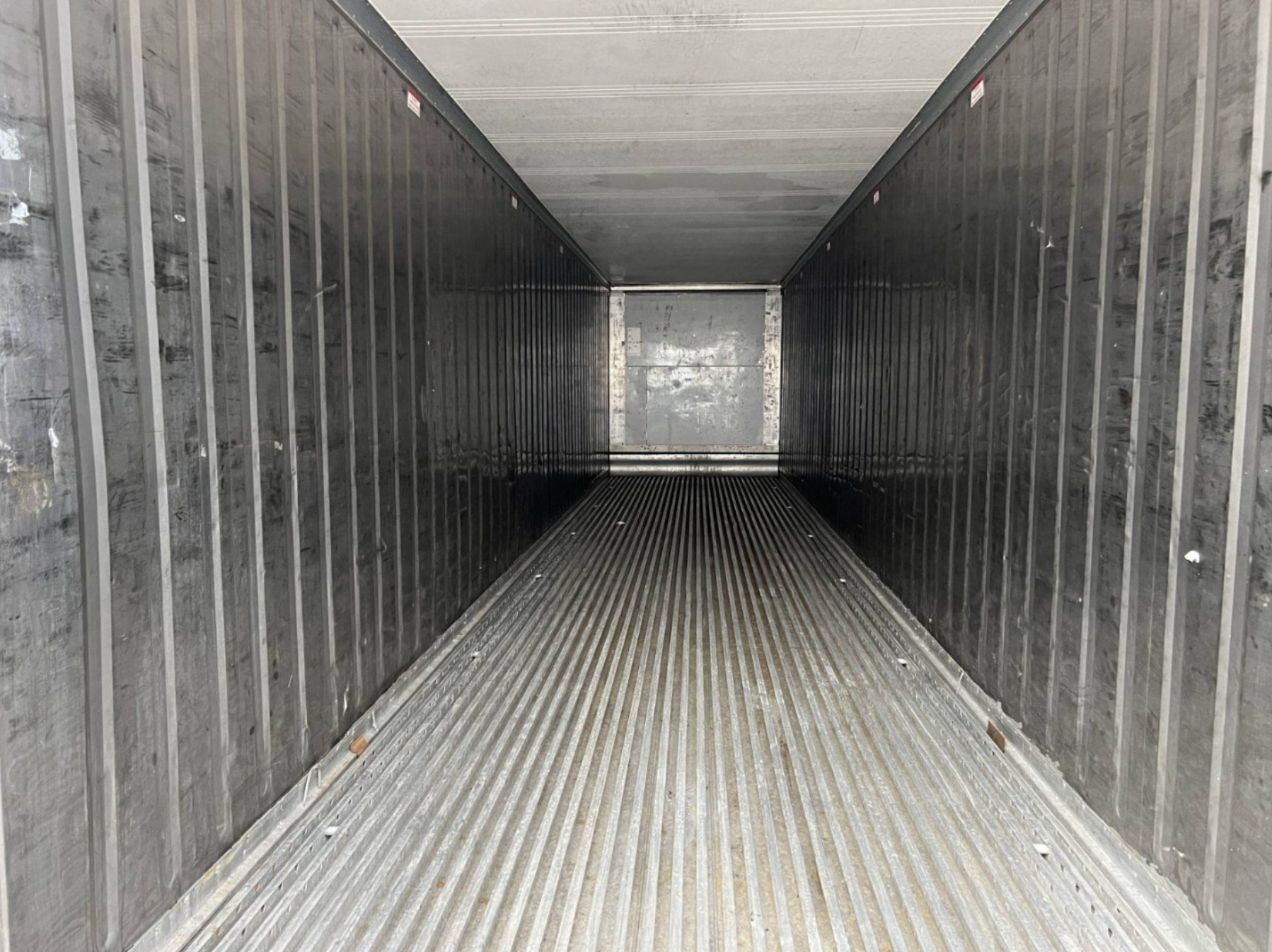

| Floor Profile Type | Industrial Aluminum T-Floor | High-Airflow Configuration |

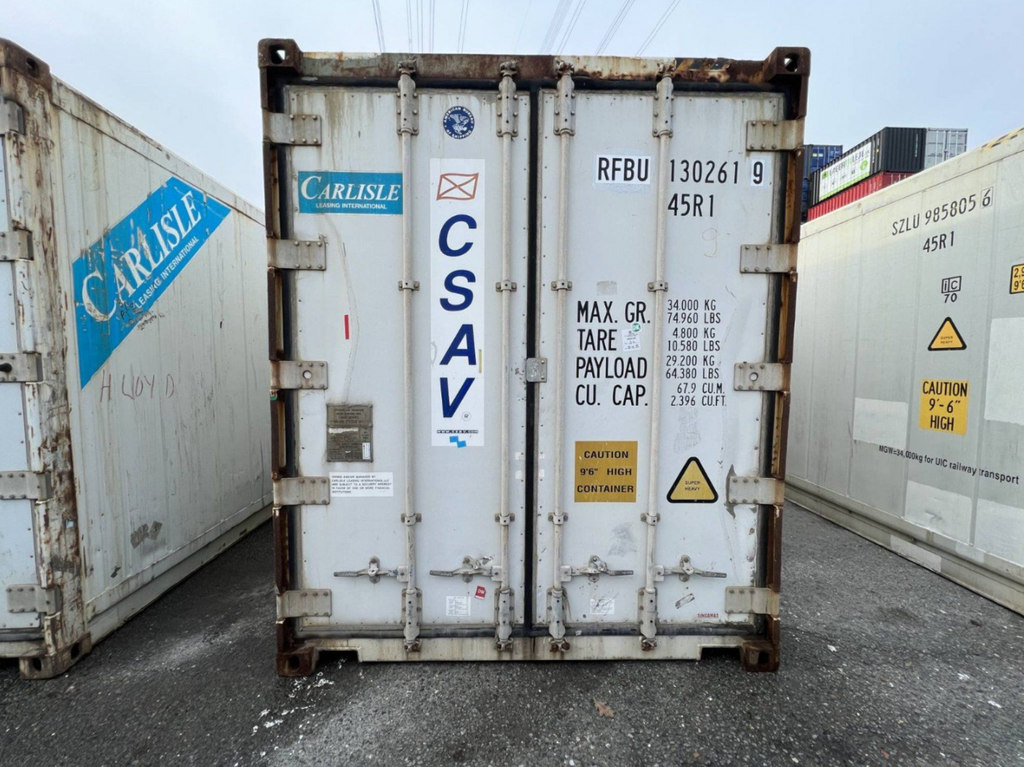

| Access Configuration | Insulated Double Cargo Doors | High-Leverage Locking Bars |
| External Length | 12,192 mm | 40' 0 |
| External Width | 2,438 mm | 8' 0 |
| External Height (High Cube) | 2,896 mm | 9' 6 |
| Internal Length | 11,599 mm | 38' 0.25 |
| Internal Width | 2,290 mm | 7' 6.125 |
| Internal Height | 2,545 mm | 8' 4" |
| Tare / Unladen Weight* | 4,760 kg | 10,490 lbs |
| Maximum Payload Capacity | 27,500 kg | 60,620 lbs |
| Condition | Used | — |
